NM Series

Integrated Solar Street Light

All-in-one integrated design with high efficiency and reliable performance for roads, communities and infrastructure projects.

6–12m

Pole Height

Up to 27,000 lm

Luminous Flux

IP66

Protection

Key Features

Integrated design, easy installation

Grade A LiFePO₄ battery for long lifespan

Multiple working modes to meet different project needs

Models in NM Series

Product

Model

Product Size

Lumen

Solar Panel

Battery

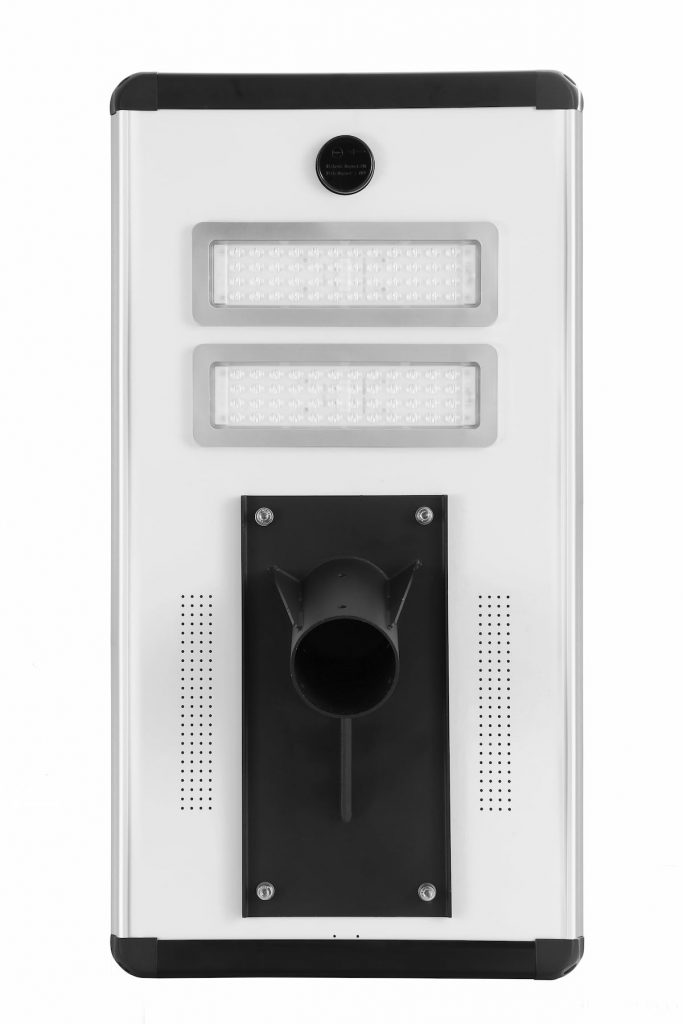

NM-40

785*410*60MM

3,060lm

12V/40W

12.8V/ 15AH LiFe PO4

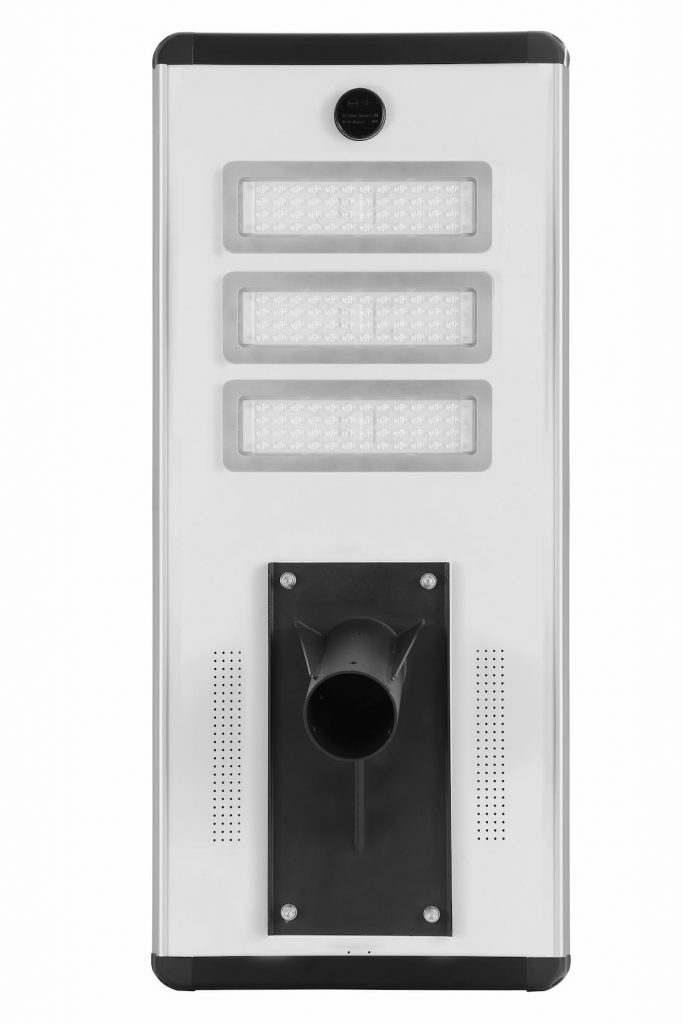

NM-60

940*410*60mm

5,950lm

12V/60W

12.8V /30AH LiFe PO4

NM-80

1220*410*60mm

6,800lm

18V/80W

384WH/ 12.8V LiFe PO4

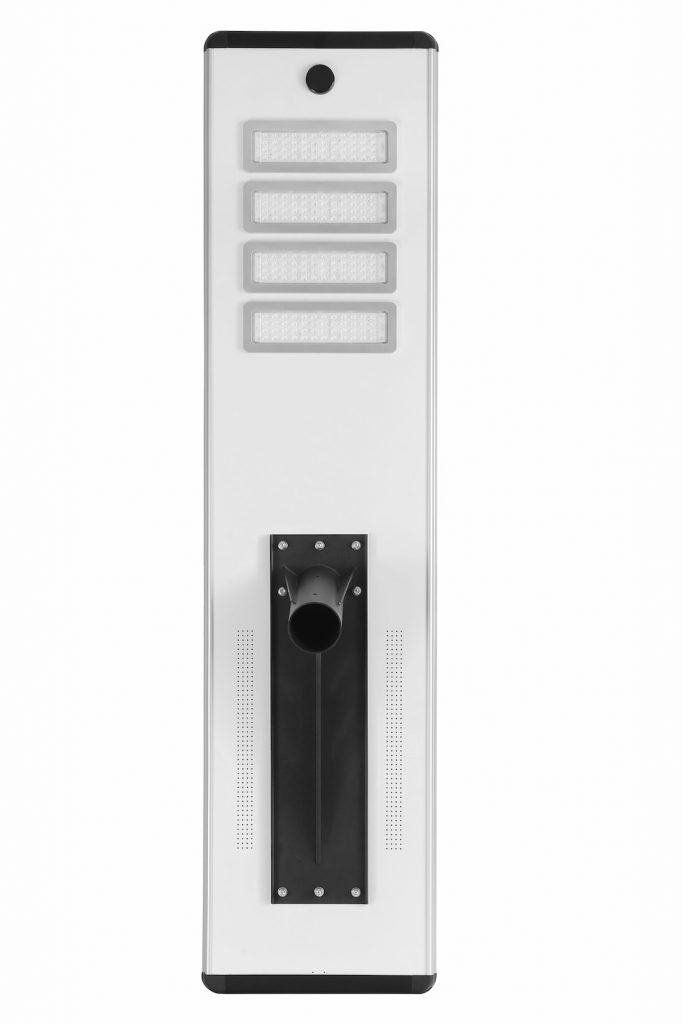

NM-100

1675*410*60

8,500lm

12V/100W

12.8V /45AH LiFe PO4

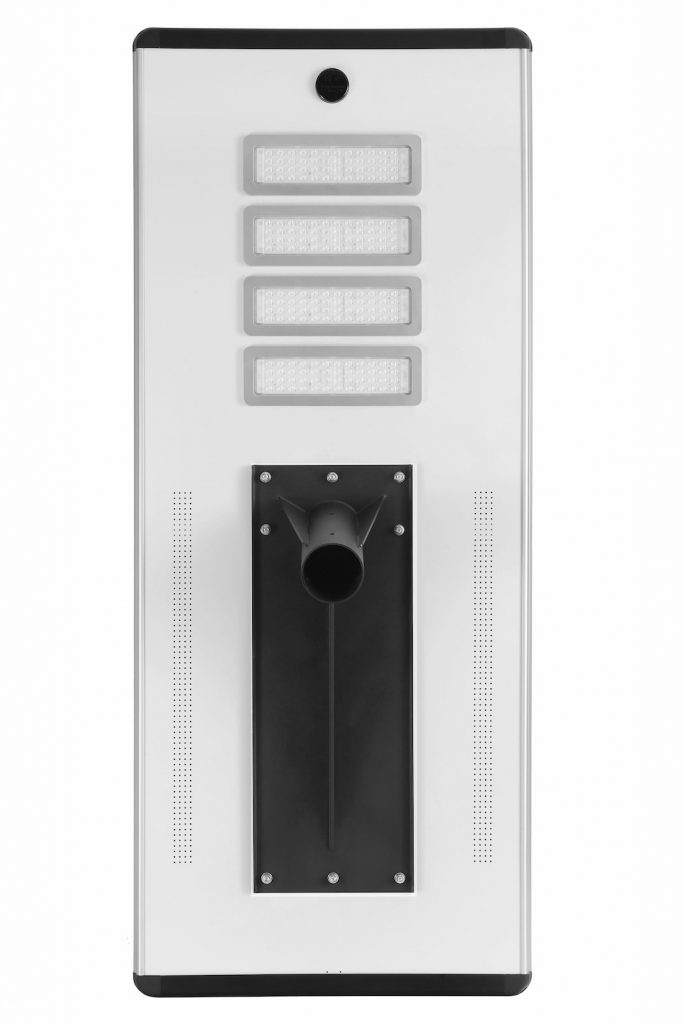

NM-120

1445*600*60mm

11,050lm

12V/120W

12.8V /60AH LiFe PO4

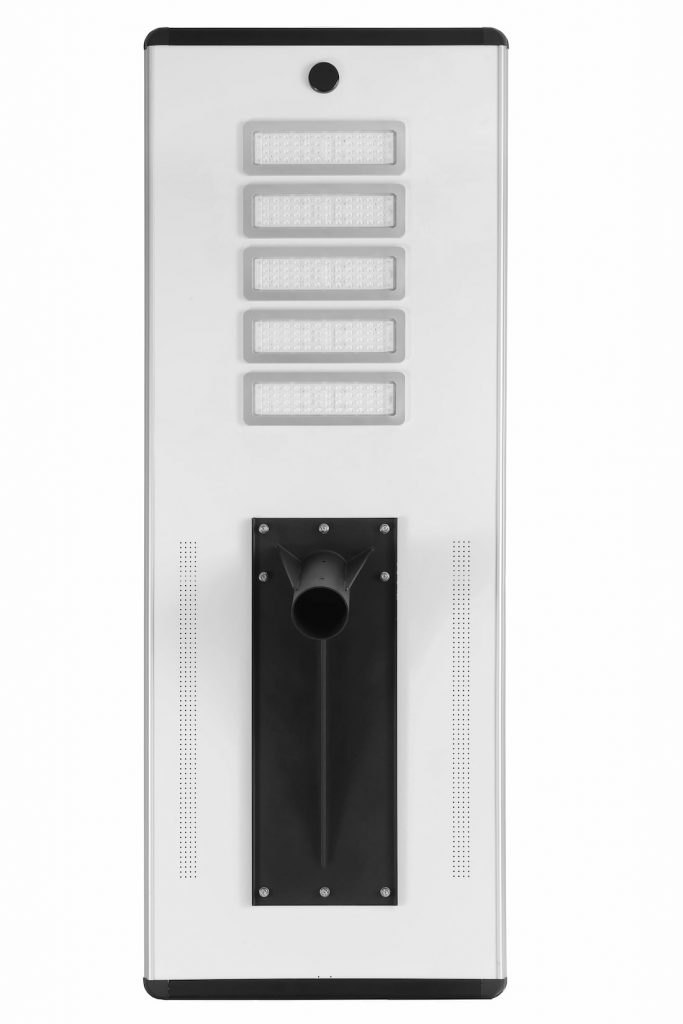

NM-150

1615*600*60mm

11,560lm

12V/150W

12.8V/ 75AH LiFe PO4

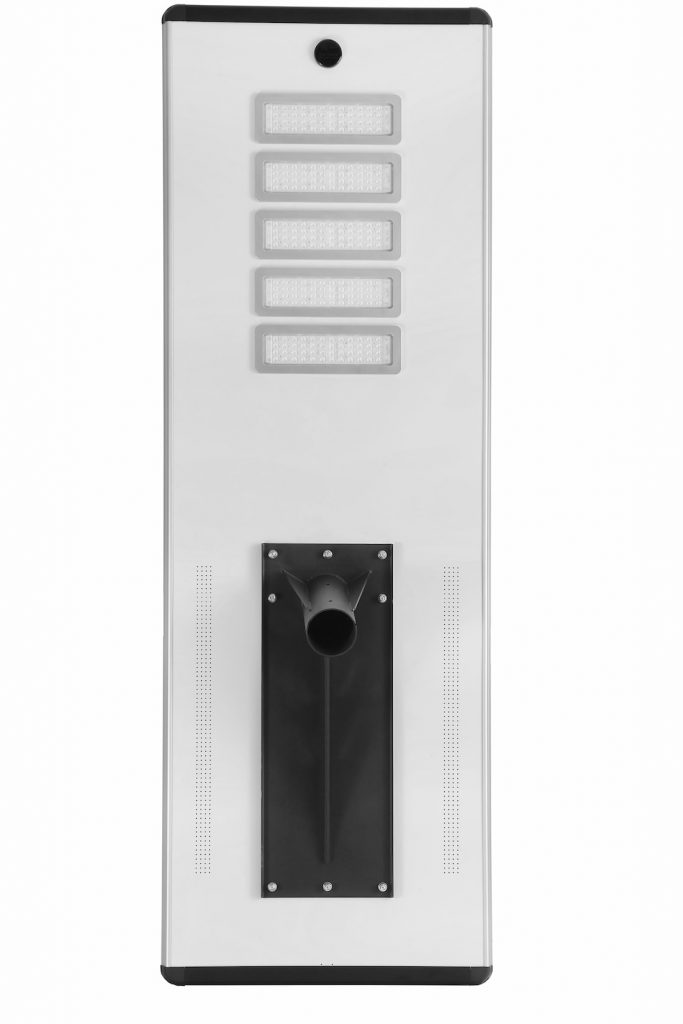

NM-200

1750*600*60mm

14,450lm

24V/200W

25.6V/ 45AH LiFe PO4

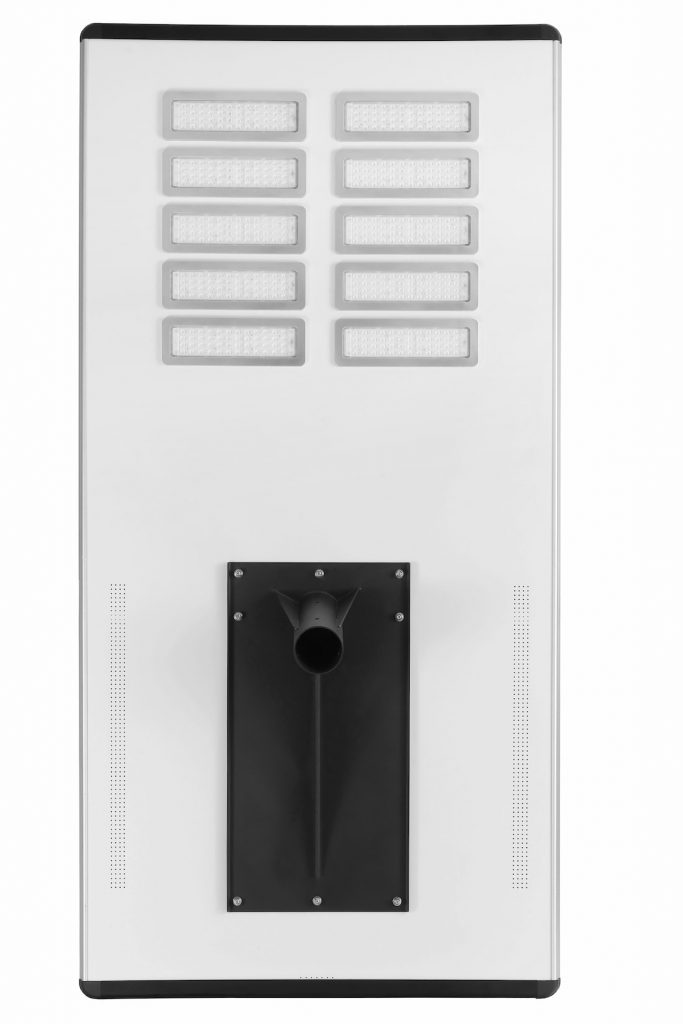

NM-300

1800*900*60mm

23,800lm

24V/300W

25.6V/ 75AH LiFe PO4

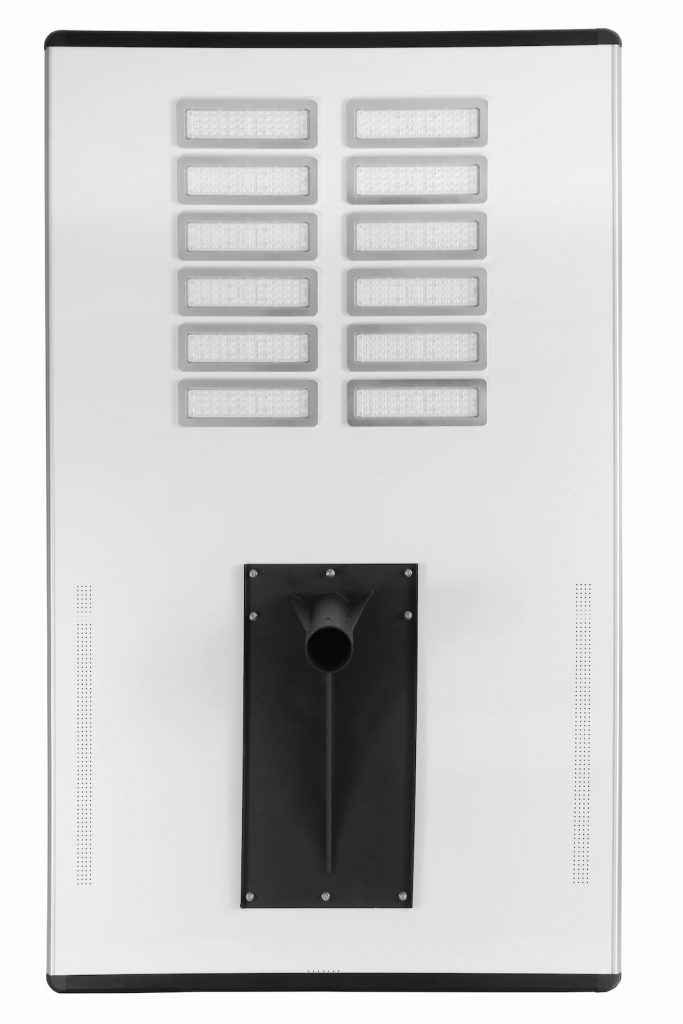

NM-400

1795*1110*60mm

27,200lm

24V/400W

25.6V/ 90AH LiFe PO4

Not sure which model suits your project?

Our engineers can recommend the right model based on your road conditions and lighting requirements.
